DiSEqC Switch S16-W

Overview

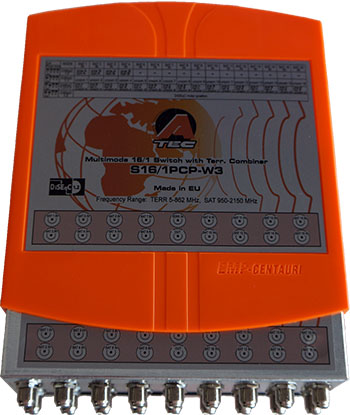

17in/1out 1.1&1.2 switch for up to 16 satellite positions and 1 subscriber, equipped with combiner for terrestrial band. It is designed for switching between 9 to 16 LNBs. Control mode is configured using built-in DIP switch, see Instruction manual for details.

Features

  • Weatherproof outdoor plastic housing.
  • Support for Twin/Quad/Octo LNB ("High ISO").
  • Configurable operation mode DiSEqC 1.1/1.2.
  • Terrestrial input.
  • Short-circuit protection.
  • Extended temperature range.

Specifications

  • Number of Inputs17
  • Number of Outputs1
  • Frequency range inputLNB 950-2150 MHz, Terr. 5-862 MHz
  • Frequency range output5-2150 MHz
  • ControlDiSEqC 1.0, 1.1, 1.2 commands
  • Insertion loss (avg)Sat. 5 dB, Terr. 2 dB
  • Sat. inputs isolation25 dB min
  • Maximum Output Level (avg)97 dBµV
  • Power consumptionFrom receiver 80 mA (18V) + LNB, LNB current 400 mA max
  • Dimensions (w,d,h)17.2 x 20 x 6.9 cm
  • Temperature range-30 ~ +70 °C

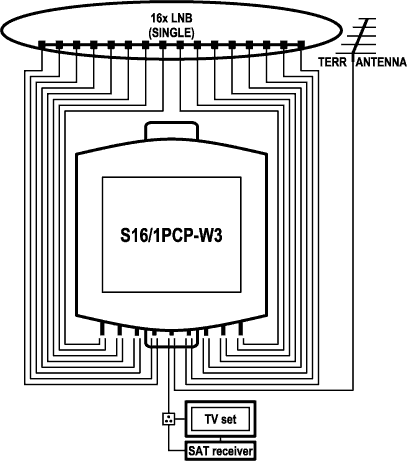

Utilization

Downloads

  • Instruction Manual and Technical Specifications Download
