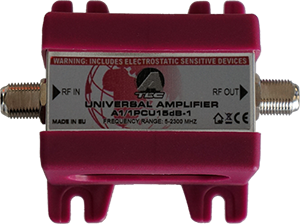

15db Amplifier

Overview

1in/1out 15 dB gain terrestrial and satellite amplifier with high Pout and slope, feeded via coaxial cable from remote supply (9-20 V DC). The amplifier passes through DC power and LNB control.

Features

  • High output signal level
  • Extended satellite frequency range
  • Extended temperature range

Specifications

  • Number of Inputs1
  • Number of Outputs1
  • Frequency range40-2300 MHz
  • Insertion gain12-15 dB
  • Maximum Input Level (avg)TERR 94dBuV, SAT 98 dBuV
  • Maximum Output Level (avg)TERR 109dBuV, SAT 113 dBuV
  • Power consumption85 mA (12-18 V DC)
  • Dimensions (w,d,h)7.6 x 3.7 x 1.7 cm
  • Temperature range-30 ~ +70 °C

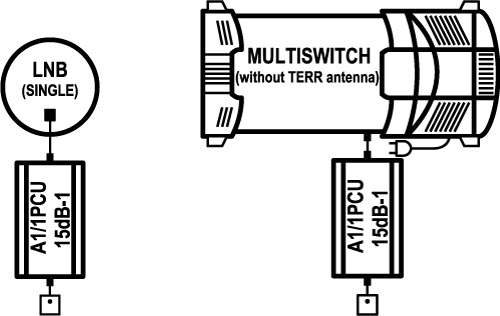

Utilization

Downloads

  • Instruction Manual and Technical Specifications Download
